MagIQ and MagIQ Duo

The MagIQ MRI phantom is an image quality phantom for Magnetic Resonance Imaging(MRI) comprising a single chamber (MagIQ) or two identical chambers (MagIQ Duo) which may be filled with different solutions to create two test objects (e.g. high field and low field). A total of 5 (MagIQ) or 10 (MagIQ Duo) separate signal compartments can be used.

MagIQ is supplied with 3.5 litres each of 1.5T and 3.0T MRI Solutions as standard.

Dimensions: 230mm dia. (254mm with caps) & 100mm deep (solo).

MagIQ includes the following features:

  • Reproducible positioning and test conditions
    white pigment-filled centre markings
    integral bubble level
    external LCD temperature strip
  • Geometric Distortion
    An array of 25.0mm uniformly pitched, high contrast circles
  • Spatial Resolution
    LP/mm (1.0 LP/mm)
    MTF edge block
  • Contrast Resolution
    Fat Suppression
    8 user defined compartments (4 x in each arrangement)
  • SNR / Ghosting / Uniformity
    Flood-fill section for measurement of SNR, ghosting, uniformity
  • Slice Profile
    Wedges or ′virtual plates′ can be used for slice profile measurements
  • Automatic Scoring Software (available separately)
    See Radia software for more details

Conforms to standards:

  • IEC 62464-1:2007
Automatic analysis software is available for this phantom:
Radia

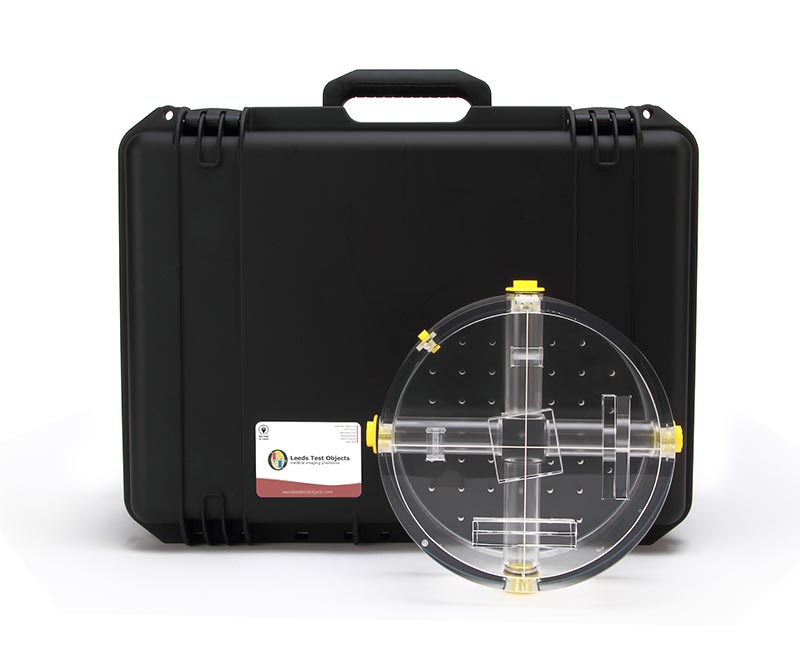

MagIQ Solo Phantom

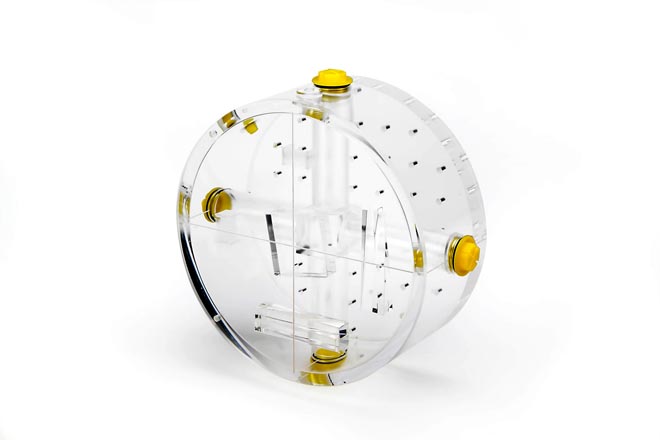

MagIQ Solo Phantom
