Dental

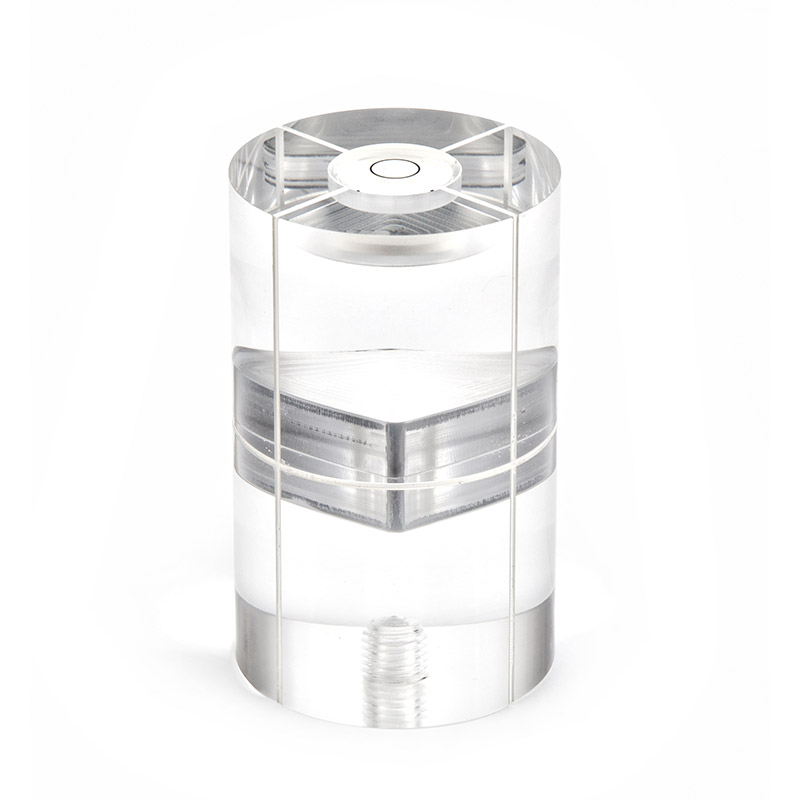

CBCT-161-Mini

CBCT-161-MINI is used for constancy testing of small field of view dental CBCT systems.  It is a smaller version of CBCT-161 which was designed in accordance with the DIN 6868-161
standard.

CBCT-161-MINI includes:
– PMMA cylinder with;50 mm diameter, 80 mm length
– Spirit level and pigment-filled centre markings for easy and reproducible positioning.
– Tripod for universal positioning
– Levelling platform
– Soft tissue equivalent; PMMA – density 1.20 ± 0.01
– Bone equivalent; PVC- density 1.30 – 1.45 g/cm
– Air gap

– FREE Software

CBCT-161-MINI permits measurement of the following image quality parameters:
– Pixel Intensity Value Linearity
– Noise
– CNR / SNR
– Uniformity
– Artefacts
– MTF
